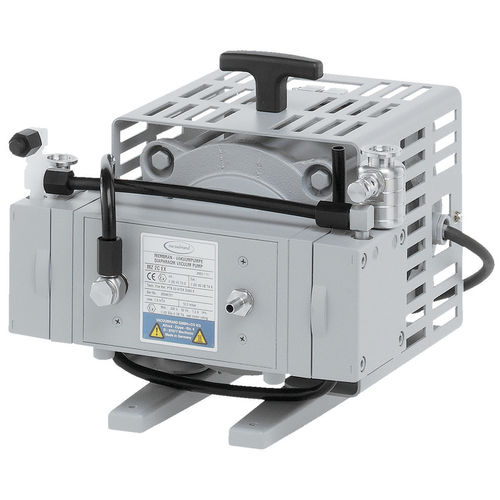

Diaphragm vacuum pump MZ 2C EXoil-free230VAC220VAC
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- oil-free
- Supply voltage
- 230VAC, 220VAC
- Number of stages
- two-stage
- Applications
- for laboratories, for the chemical industry, for gas, chemical process, for pharmaceutical applications, for the plastics industry
- Other characteristics
- chemical-resistant, ATEX
- Ultimate vacuum
12 mbar, 18 mbar
(0.17 psi, 0.26 psi)- Flow rate
1.9 m³/h
(67.1 ft³/h)- Power
0.15 kW
(0.2 hp)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)- Length
337 mm
(13 in)- Width
278 mm
(10.94 in)- Height
251 mm
(9.88 in)- Noise level
50 dB
- Weight
21.6 kg
(47.62 lb)
Description
ATEX chemistry diaphragm pumps offer all advantages of oil-free chemistry diaphragm pumps. Typical applications are rotary evaporators and drying ovens with potentially explosive atmospheres. The ATEX approval includes the interior of the pump (in contact with pumped gases) as well as the surrounding area of the pump. All wetted parts of the pumps have excellent chemical resistance and are mainly made of antistatic materials. Included in delivery is a separate gas ballast connection part for use of inert gas.
Performance features
outstanding chemical resistance and superior vapor tolerance
overpressure safety relief valves internally and at outlet
safety diaphragm technology with option for inert gas purge and detection of diaphragm breakage
