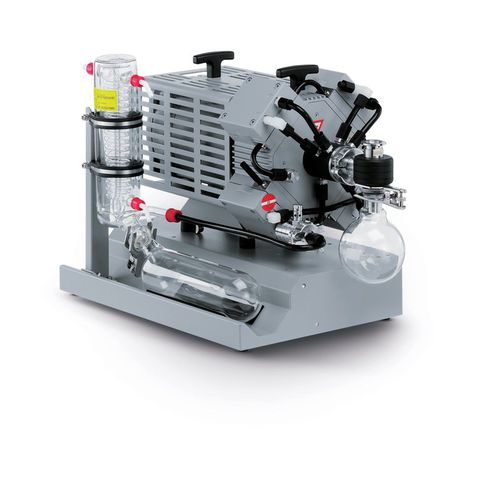

Diaphragm vacuum pump MD 4C EX +AK+EKoil-free230VACthree-stage
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- oil-free
- Supply voltage
- 230VAC
- Number of stages
- three-stage
- Applications
- for laboratories, for the chemical industry, for gas, chemical process, for pharmaceutical applications, for the plastics industry
- Other characteristics
- compact, chemical-resistant, ATEX
- Ultimate vacuum
3 mbar, 10 mbar
(0.04 psi, 0.15 psi)- Flow rate
3.7 m³/h
(130.66 ft³/h)- Power
0.25 kW
(0.34 hp)- Operating temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)- Length
600 mm
(24 in)- Width
365 mm
(14.37 in)- Height
420 mm
(16.54 in)- Noise level
53 dB
- Weight
37.4 kg
(82.45 lb)
Description
ATEX chemistry vacuum systems are ready for use for applications with large amounts of condensable vapors due to optimally configured accessories. Typical applications are rotary evaporators and drying ovens with potentially explosive atmospheres. The separator at the inlet (AK) retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery. Included in delivery is a separate gas ballast connection part for use with inert gas.
Performance features
outstanding chemical resistance and superior vapor tolerance
overpressure safety relief valves internally and at outlet
safety diaphragm technology with option for inert gas purge and detection of diaphragm breakage
separator AK and emission condenser EK for pump protection and solvent recovery
