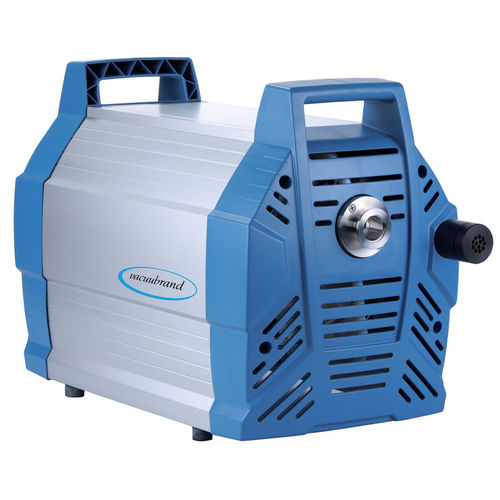

Diaphragm vacuum pump ME 16 NT
oil-free230VACsingle-stage

Diaphragm vacuum pump - ME 16 NT - VACUUBRAND - oil-free / 230VAC / single-stage
Diaphragm vacuum pump - ME 16 NT - VACUUBRAND - oil-free / 230VAC / single-stage
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
230VAC
Number of stages
single-stage
Applications
for medical applications, for laboratories, for the chemical industry, for gas, chemical process, for pharmaceutical applications, for the plastics industry
Other characteristics
compact, low-noise level
Ultimate vacuum

70 mbar
(1.02 psi)

Flow rate

16.4 m³/h, 18.4 m³/h
(579.16 ft³/h, 649.79 ft³/h)

Power

0.53 kW
(0.72 hp)

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 60 °C
(140 °F)

Length

554 mm
(22 in)

Width

260 mm
(10.24 in)

Height

359 mm
(14.13 in)

Noise level

54 dB

Weight

30.6 kg
(67.46 lb)

Description

Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. The one-stage design provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All parts in contact with pumped media are made of aluminum and selected plastics allowing a wide range of applications for non-corrosive gases. The highly flexible, fabric-reinforced double diaphragms made of FKM are ideal for extended operating life. These pumps are particularly powerful and offer large volume flow. The eight-cylinder pump ME 16 NT features exceptionally high pumping speed, low vibration and a very compact design with smooth and easy-to-clean surfaces. Large one-stage diaphragm pumps are an excellent choice for continuous, oil-free pumping of large amounts of gases. Typical applications are vacuum ovens and in general evacuation and pumping of non-corrosive gases. We recommend these pumps especially for processes with high inlet and process pressures. They are also excellent for very fast evacuations down to modest vacuum levels. Performance features contamination-free pumping and evacuation high flow rate even near ultimate vacuum whisper quiet very low vibration exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
