Magnetic choke
DCcircularindustrial

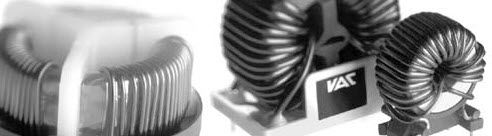

Magnetic choke - Vacuumschmelze GmbH & Co. KG - DC / circular / industrial
Magnetic choke - Vacuumschmelze GmbH & Co. KG - DC / circular / industrial
Add to favorites
Compare this product


Characteristics

Technology
magnetic
Electrical characteristics
DC
Configuration
circular
Applications
industrial, for switching power supplies
Primary current

Max.: 21 A

Min.: 1.5 A

Description

DC Chokes are used in most switched-mode power supplies. It is their task to smooth the pulsating direct current by storing energy during the "ON" duty cycle and maintaining the current flow in the load circuit in the "OFF" cycle. Inductances with high direct current preloading capability are required. Output chokes in modern power supplies therefore have to meet stringent requirements, such as high storage energy in small component volumes and low losses at high switching frequencies. Moreover, a low-cost design is generally required. Features - in PTH and in special housings as open or moulded types - upright and low profile designs - nominal currents IN up to 70 A
