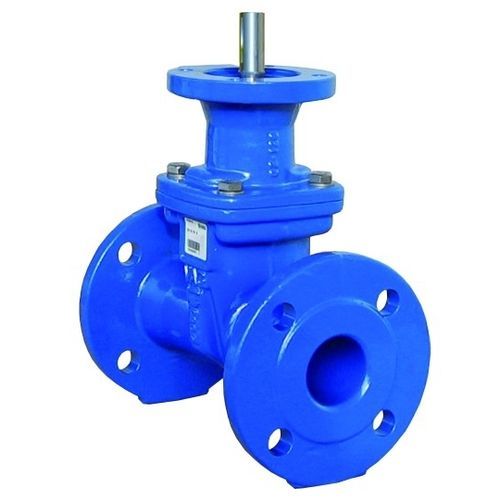

Gate valve EKO®pluswith handwheelelectrically-actuatedfor wastewater
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- with handwheel, electrically-actuated
- Media
- for wastewater, for seawater
- Body
- flange, seat, stainless steel, brass, cast iron
- Applications
- for vacuum, for water systems
- Other characteristics
- DIN, corrosion-resistant, with seal
- DN
Min.: 40 mm
(1.575 in)Max.: 600 mm
(23.622 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)- Temperature
50 °C
(122 °F)
Description
Resilient-seated gate valve with bolted cover connection and face-to-face length of Basic Series 15 for sea-water applications. Proven design with innovative improvements, such as plastic sliding caps on the wedge, guarantee low operating torques even after many years of use. Suitable for use in sea-water desalination plants.
Product features and benefits
- Resilient seated in accordance with EN 1074 (DIN 3352 - 4B)
- Face-to-face length acc. to EN 558-1, basic series 15 (DIN 3202, F5)
- With flange ends on both sides acc. to EN 1092-2
- Low operating torque due to plastic sliding guides on the wedge
- Maintenance-free and corrosion-resistant stem sealing
- With triple O-ring sealing
- Low wear due to wedge guiding and elongated stem bearing
- Suitable for vacuum of up to 90%
