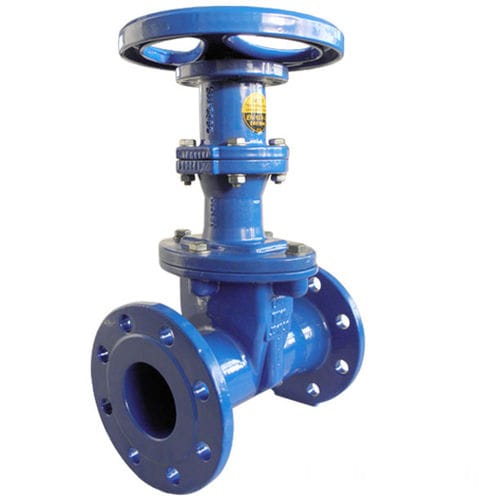

Rising stem valve EKO®plusgatewith handwheelelectrically-actuated
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- with handwheel, electrically-actuated
- Function
- distribution
- Media
- for water
- Body
- flange, stainless steel, brass, cast iron, iron
- Applications
- for vacuum
- Other characteristics
- standard, DIN, corrosion-resistant, rising stem
- DN
Max.: 500 mm
(19.685 in)Min.: 50 mm
(1.969 in)- Pressure
10 bar, 16 bar, 25 bar
(145 psi, 232.1 psi, 362.6 psi)- Temperature
50 °C
(122 °F)
Description
Resilient-seated gate valve with bolted cover connection and rising stem, and face-to-face length of Basic Series 15 for water applications. Proven design with innovative improvements, such as plastic sliding caps on the wedge, guarantee low operating torques even after many years of use. Suitable for water-treatment applications, water distribution, power plants and industry.
Sealing system/standard: Resilient seated in accordance with EN 1074 (DIN 3352 - 4B)
Face-to-face length: acc. to EN 558, basic series 15 (DIN 3202, F5)
With flange ends on both sides acc. to EN 1092-2
Low operating torque due to plastic sliding guides on the wedge
outside
With handwheel
Maintenance-free and corrosion-resistant stem sealing
With triple O-ring sealing
Low wear due to wedge guiding and elongated stem bearing
Suitable for vacuum of up to 90%
For gasses acc. to DVGW guideline G 260
