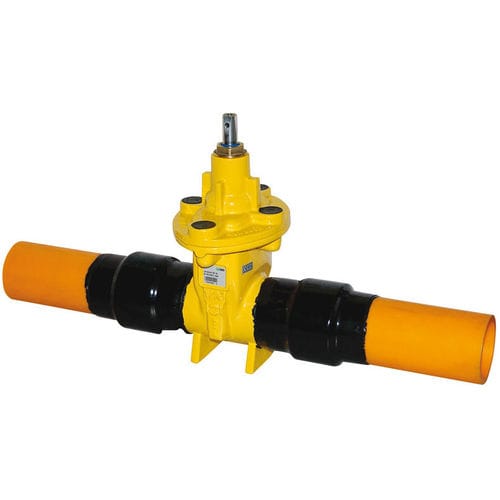

Gate valve EKO®plus PEmanualfor gasstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- manual
- Media
- for gas
- Body
- stainless steel, brass, cast iron, iron
- Applications
- for pipelines, welding
- Other characteristics
- DIN, corrosion-resistant
- DN
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)- Pressure
10 bar
(145 psi)- Temperature
50 °C
(122 °F)
Description
Resilient-seated gate valve with bolted cover connection and PE-HD ends on both sides for welding to the pipeline in gas applications. Proven design with innovative improvements, such as plastic sliding caps on the wedge, guarantee low operating torques even after many years of use. Suitable for use in gas main and service pipelines.
Product features and benefits
- Resilient seated in accordance with EN 13774 (DIN 3352 - 4A)
- With PE-HD ends on both sides acc. to SDR 11
- Low operating torque due to plastic sliding guides on the wedge
- Maintenance-free and corrosion-resistant stem sealing
- With triple O-ring sealing
- Low wear due to wedge guiding and elongated stem bearing
- Designed for mirror welding and electro-fusion welding
- Extended welding ends for a second electro-fusion welding on both sides
- For gasses acc. to DVGW guideline G 260
