Distribution valve EKO®plus PEgatemanualfor water
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- manual
- Function
- distribution
- Media
- for water
- Body
- seat, stainless steel, brass, cast iron
- Applications
- for pipelines, for water systems, welding
- Other characteristics
- DIN, corrosion-resistant
- DN
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)- Pressure
16 bar
(232.1 psi)- Temperature
50 °C
(122 °F)
Description

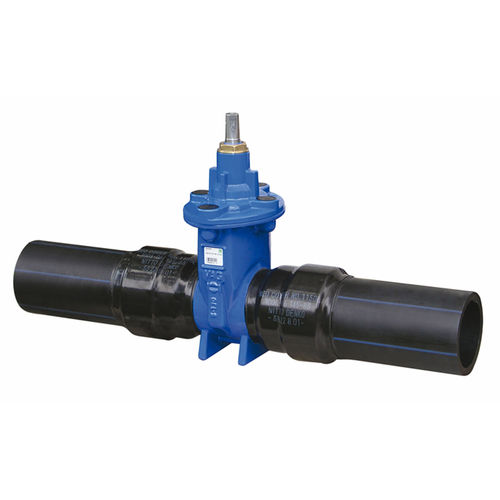

Resilient-seated gate valve with bolted cover connection and PE-HD ends on both sides for welding to the pipeline in water applications. Proven design with innovative improvements, such as plastic sliding caps on the wedge, guarantee low operating torques even after many years of use. Suitable for use in water distribution, in power plants, in industry and in pressure management.
Sealing system/standard: Resilient seated in accordance with EN 1074 (DIN 3352 - 4A)
With PE-HD ends on both sides acc. to SDR 11
Low operating torque due to plastic sliding guides on the wedge
Maintenance-free and corrosion-resistant stem sealing
With triple O-ring sealing
Low wear due to wedge guiding and elongated stem bearing
Designed for mirror welding and electro-fusion welding
Extended welding ends for a second electro-fusion welding on both sides
With integrated adapter for the TELEMAX® stem extension
