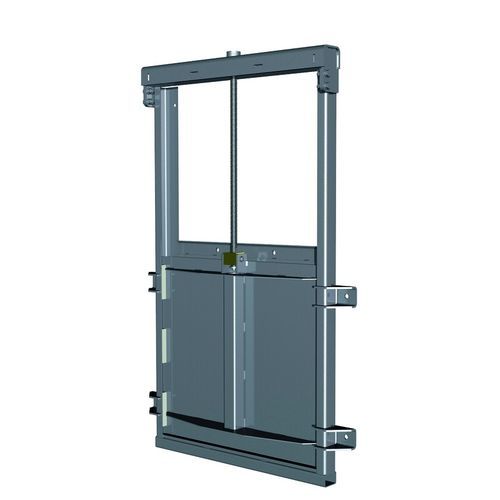

Penstock valve ERI®plus

slidewith handwheelfor control

Shut-off and control penstock with a compact design (closed frame design); four-side sealing, made of stainless steel, for wall mounting. Especially sturdy design with separate sliding and sealing system. Suitable for use in wastewater applications, water treatment plants, in stormwater retention basins and in flood protection. Compact valve with self-contained frame design for wall mounting with anchors Vibration-free guiding of the gate over the entire travel; can be used in intermediate positions as control valve Sliding system between gate and frame Sturdy welded structure; components dip pickled and passivated Rotatable stem nut Integrated and chambered profiled seal Seal between valve and wall mounted to the valve and ready for operation Non-rising stem Sealing system/standard: Four side sealing Tightness: max. 1% (on seating pressure) and max. 5% (off seating pressure) of leakage rate acc. to DIN 19569 Part 4 in installed state Square opening for wall mounting with anchors
