Knife gate valve ZETA®
with handwheelshut-offfor wastewater

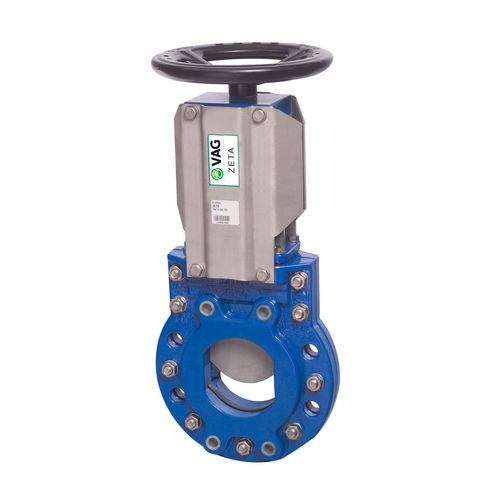

Knife gate valve - ZETA® - VAG-Group - with handwheel / shut-off / for wastewater
Knife gate valve - ZETA® - VAG-Group - with handwheel / shut-off / for wastewater
Knife gate valve - ZETA® - VAG-Group - with handwheel / shut-off / for wastewater - image - 2
Knife gate valve - ZETA® - VAG-Group - with handwheel / shut-off / for wastewater - image - 3
Add to favorites
Compare this product


Characteristics

Type
knife gate
Operation
with handwheel
Function
shut-off
Media
for wastewater
Body
flange, wafer, stainless steel, brass, cast iron
Applications
industrial, power line
Other characteristics
DIN
DN

Max.: 600 mm
(23.622 in)

Min.: 50 mm
(1.969 in)

Pressure

10 bar
(145 psi)

Description

Resilient-seated knife-gate valve in fully flanged design, sealing in both flow directions, with integrated scraper system and free flow passage. Operation via handwheel. The enlarged bottom seal and the metallic limit stop of the knife in the body ensure perfect tightness. Suitable for use as shut-off valve in waste-water applications, in dams, in power plants and in industry. Face-to-face length: acc. to EN 558, basic series 20 (DIN 3202 / K1) With flange end acc. to EN 1092-2, PN 10 Full-flange design, both as wafer type and for pipeline end installation, without additional counter flange at full differential pressure Full-flange design with unrestricted flow passage Leakproof from both flow directions Horizontal sealing adjustable during operation and replaceable with the valve installed in the pipeline Scraper installed on both sides of the plate to clean the knife
