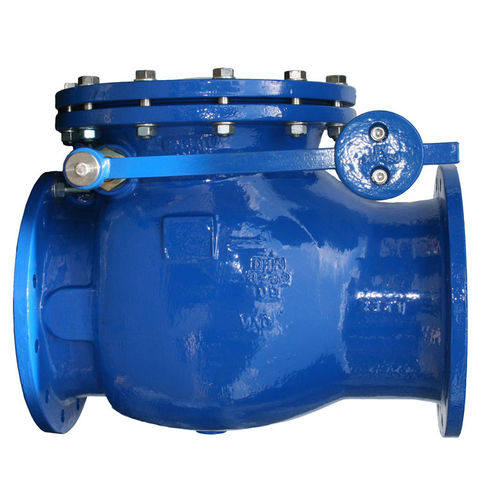

Disc check valve AW

DINflangefor water

Straight-seat check valve with internal shaft and optional lever and weight. Highly cost-efficient due to high opening degree. Available with stainless-steel wire guard and limit signal for the open position as options. Its premium-quality materials make the valve particularly resistant to the media conveyed. The large inspection cover allows for easy maintenance. Suitable for use in waste-water applications, in power plants and in industry. Sealing system/standard: Metallic sealing in accordance with EN 16767 Face-to-face length: acc. to EN 558, basic series 48 (DIN 3202, F6) With flange ends on both sides acc. to EN 1092-2 With lever and weight (located on the right in flow direction) For horizontal pipelines Lever and weight useable for position indicator Connection between shaft and disk by key With large access bonnet for easy maintenance
