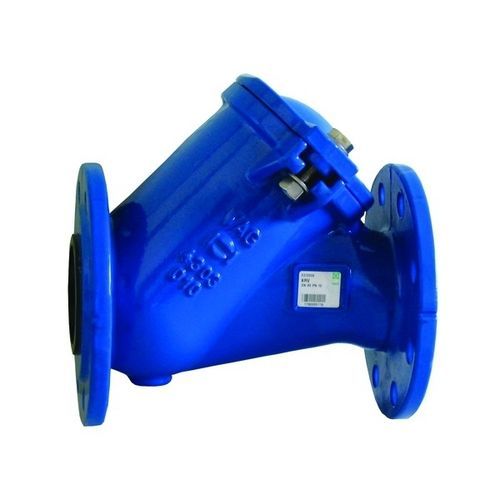

Ball check valve KRV

DINflangehigh-pressure

Resilient-seated non-return valve with sinking ball and free flow passage for minimum friction loss. Especially suitable for use in polluted media as the shape of the valve prevents the build-up of dirt. Highly maintenance-friendly due to the large clean-out hole. Suitable for use in waste-water applications, in power plants and in industry. Sealing system/standard: Resilient seated in accordance with EN 16767 Face-to-face length: acc. to EN 558, basic series 48 (DIN 3202, F6) With flange ends on both sides acc. to EN 1092-2, PN 10 No mechanically moving parts Easy to maintain Prevention of back flow via ball check principle Little risk of blockage due to full bore type Applicable at low differential pressure Low friction losses With sinking ball
