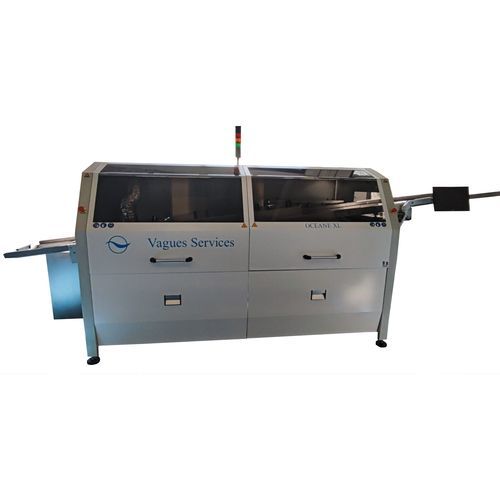

Wave soldering machine OCEANE XL

automaticfor medium-scale productionfor PCB

• Nozzle width: 420 mm • PCB volume: Medium / large series • Overall dimension & Weight: Length: 2.50 m - Width: 1.40 m - Height: 1.70 m - Empty weight: 500 Kg - Alloy: 380 Kg • Electric Power: 27 kVa • Voltage: 3 x 380V + T + N A machine concept that offers remarkable performance, machine specially designed for small and medium series, ideal for all production requirements. The society WAVES SERVICES commits to a 20-year warranty on the titanium tank, pipes and nozzles against RoHS alloy corrosion and also provides the nomenclature of all electrical equipment distributed in France and supplier references WAVES SERVICES ensures a 20-year durability on spare parts. No restriction for maintenance. You can use a stainless steel spatula, vibrating sander etc…, or even perform a micro-blasting of the tank and the nozzles if you change the type of alloy without having to remove the warranty on the material. Double wave machine nozzle width: 420 mm Stainless steel chain conveyor with automatic tension (maintenance free) Double wave titanium head Quartz preheating with stainless steel tunnel length 1 meter Spray fluxer Touch screen control panel with possibility of 32 soldering programs Programmable alloy bath heating Machine accepts the passage of 10 successive frames of different programs with triggering of 10 independent grafcets Motorcycle fume extraction fan Shortwave infrared upper preheating Nitrogen hood
