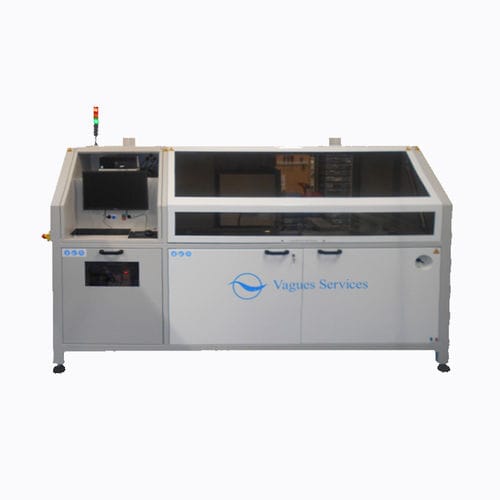

Wave soldering machine SWSautomaticfor PCBcompact
Add to favorites
Compare this product
Characteristics
- Technique
- wave
- Operating mode
- automatic
- Applications
- for PCB
- Other characteristics
- compact, in-line, electric
Description
WAVES SERVICES shines again in the design and manufacture of new selective soldering equipment for electronic boards.
A machine concept that offers remarkable performance, stability and exceptional repeatability, ideal for all production requirements on double reflow circuits, depending on their design, where the transition to traditional wave soldering is not necessary for certain components.
3 independent chain conveyors
1 Spray fluxing zone
1 pressurized bottle cage
1 Lower shortwave infrared preheating zone
1 Brazing area with multi-nozzles
1 Electric wave head up / down system
1 Automatic welding advance in Ø6mm wire
1 Nitrogen inerting cover with flowmeter plate
1 Control panel via PC screen + keyboard
1 Mechanically welded frame equipped with 2 hoods and retention tanks
1 Electrical cabinet HMI control panel
Schneider M340 PLC
Pc
