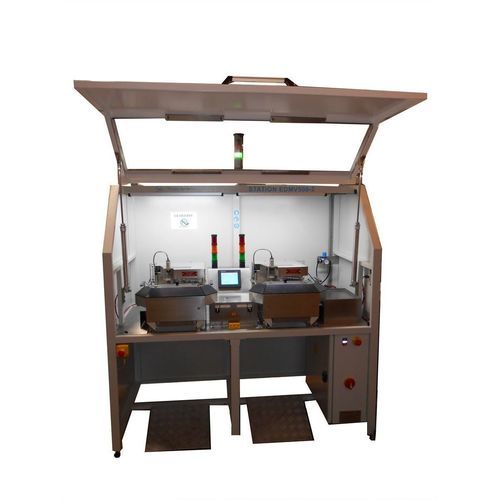

Tinning machine EDMV 500

WAVES SERVICES stands out in the design and manufacture of new selective carousel soldering equipment for electronic boards, maximum circuit dimension: 250 x 250 mm. A machine concept that offers outstanding performance, stability and exceptional repeatability, ideal for all production requirements. Empty weight: About 1 Ton Installed power: 11 kW Voltage: Tri 380 V + N + T Noise level: less than 70 DB Overall dimensions: Length 2030 x width 2430 x Height 2010 mm approximately Mechanically welded frame + doors Motorized linear rotary table Dropjet spray fluxing station Displacement X, Y Hot air preheating station Selective soldering station Loading and unloading station Barcode reader station (option) Support tools for 4 product locations Electrical cabinet Operator control panel, touch screen Ventilation system Bottle cage for pressurized pot
