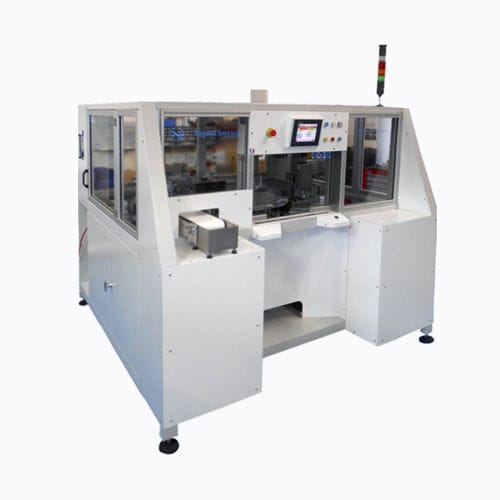

Carousel brazing machine

mini-waveautomaticrotary

Carousel for enamelled coils • Designation: Carousel for un-enamelling • Model: Cup crucible or Rotary pot • Number of coils per cycle: 4 pcs • Cycle time: Minimum 6 seconds depending on options • Power & Voltage: 3000W / 400V + N + T • Empty weight & Alloy weight: 520 Kg / Between 6 and 15 Kg All un-enamelling carousel pneumatic for mono-product Where then all electric for multiproducts comprising: Loading / Unloading zone with optical fibers for detection of arms and presence of parts Fluxing Zone Preheating Zone (optional) De-enamel zone Intangible barriers Rotary table with arm supports (4; 6 or 8 stations) Bottle cage for flux Cleanliness bins Electrical cabinet HMI console with touch screen Color tag Dimensions: Length 1350 mm x width 1600 mm x Height 2350 mm (The dimensions may vary slightly depending on the configuration of the station). Loading / Unloading area Station made up of an optical fiber for arm detection, 1 cell for part detection and their amplifiers. A barcode reader can be added (on supply of specifications) for launch by series or by single part. Fluxing Zone Fluxing crucible with bucket controlled by a pneumatic cylinder or electric cylinder. Custom-made bucket to be adapted to your parts Flow presence sensor Pneumatic or electric raising and lowering system Intermediate tank for flow with 3 level sensors Single bottle holder for the flow (or double if alcohol is needed) Preheating Zone (optional) Station with short-wave quartz infrared lower preheating or convection preheating zone (hot air) Desemaillage zone Tinning crucible with custom-made titanium cup. Custom-made titanium cup to be adapted to your parts
