Carousel brazing machine

mini-waveautomaticrotary

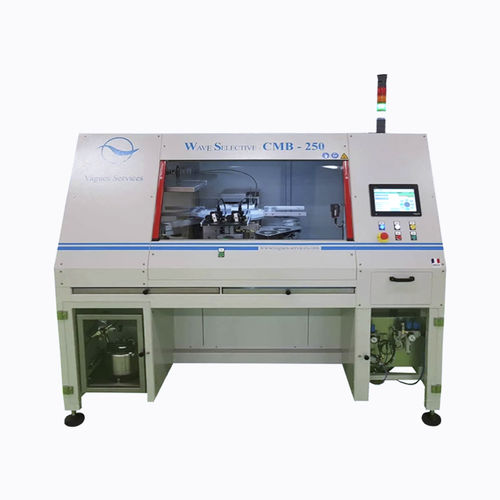

Carousel for PCB • Designation: Carousel for PCB / Electronic card • Model: Minivague with electromagnetic pump • Max PCB dimensions: 400 x 400 mm • Cycle time: Minimum 10 seconds depending on options • Power / Voltage: 11 kW / 400V + N + T • Empty weight / Alloy weight: 850 Kg / 12 Kg Brazing Carousel with Selective Mini-Wave Magnetic Pump: Loading / Unloading zone with optical fibers for detection of arms and presence of parts Fluxing Zone Preheating Zone (optional) Brazing area Intangible barriers Rotary table with arm supports (4; 6 or 8 stations) Bottle cage for flux Cleanliness bins Electrical cabinet HMI console with touch screen Color tag Dimensions: Length 1350 mm x width 1600 mm x Height 2350 mm (The dimensions may vary slightly depending on the configuration of the station). Loading / Unloading area Station made up of an optical fiber for arm detection, 1 cell for part detection and their amplifiers. A barcode reader can be added (on supply of specifications) for launch by series or by single part. Fluxing Zone "DropJet" type spray fluxer Fluxing station with electric X / Y table 2 linear axes 1 automatic spray nozzle Ø4 to 6 mm impact 1 stainless steel pressure pot - 5 liter MDC stainless steel - 0/7 bar Preheating Zone (optional) Station with short-wave quartz infrared lower preheating or convection preheating zone (hot air) Brazing area Mini Wave all titanium Electromagnetic pump system Point-to-point or online programming via PC Pot alloy level control Wave height control 1 Wettable Nozzle (diameter to be defined when ordering) Nitrogen inerting hood with porous stainless steel tube System mounted on electric axes X / Y / Z
