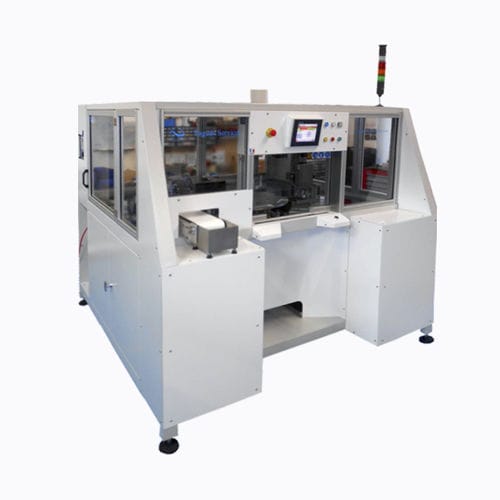

Tinning machine

Carousel for tinning / stripping • Designation: Carousel for tinning stripping • Model: Cup crucibles / Rotary Pot or Selective Minivague • Number of coils per cycle: 4 pcs • Cycle time: Minimum 6 seconds depending on options • Power / Voltage: 6000 W / 400V + N + T • Alloy weight / Empty weight: Between 6 and 15 Kg / 900 Kg Tinning / de-tinning carousel all pneumatic for mono-product Where then all electric for multiproducts comprising: Loading / Unloading zone with optical fibers for detection of arms and presence of parts 1 st Zone fluxing Mining zone 2 nd Fluxing Zone Tinning Zone Intangible barriers Rotary table with arm supports (4; 6 or 8 stations) Bottle cage for flux Cleanliness bins Electrical cabinet HMI console with touch screen Color tag Dimensions: Length 2050 mm x width 2000 mm x Height 2340 mm (The dimensions may vary slightly depending on the configuration of the station). Loading / Unloading area Station made up of an optical fiber for arm detection, 1 cell for part detection and their amplifiers. A barcode reader can be added (on supply of specifications) for launch by series or by single part. Fluxing Zone Fluxing crucible with bucket controlled by a pneumatic cylinder or electric cylinder Custom-made bucket to be adapted to your parts Flow presence sensor Pneumatic or electric raising and lowering system Intermediate tank for flow with 3 level sensors Single bottle holder for the flow (or double if alcohol is needed) Tinning Zone and Stripping Zone Technologies to choose from according to customer needs: Tinning crucible with custom-made titanium cup Custom-made titanium cup to be adapted to your parts
