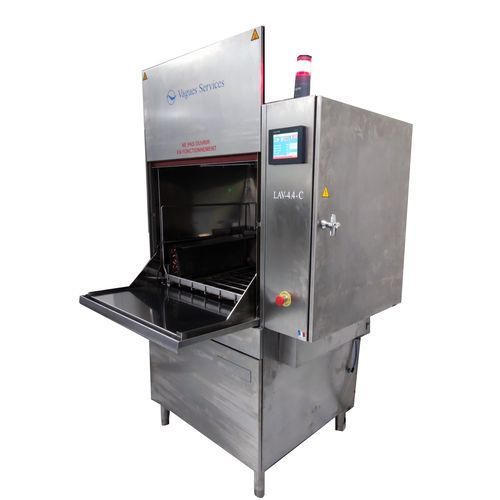

Water washing machine LAV 4.4C

framestainless steel

• Useful washing dimension: Length: 780 mm - Depth: 700 mm - Height: 650 mm • Overall dimensions & Weight: Length: 1120 mm - Depth: 920 mm - Height: 2035 mm - Empty weight: 240 Kg • Electric power: 8400 W • Voltage: 400 V Tri + N + T Washing machine for washing brazing frames, flux box on the ovens. Equipped with a multifunction screen. W 922 x D 920 x H 1840 mm (closed) W 922 x D 920 x H 2035 mm (open) Useful washing dimension: L780 x D700 x H650 mm Tank capacity for liquid detergent: 30 to 80 L maximum 230 V power supply Total power: 12,900W Cleaning temperature: 40 ° C Recommended product: ATRON SP300, dilute to 10% No rinsing Drying (option) 1 stainless steel frame, adjustable feet with container for external product 1 inlet pump 1 product re-injection pump 1 product circulation pump 1 level float 2 Tangential turbines, power 4000 W 4 hot air inlet vents
