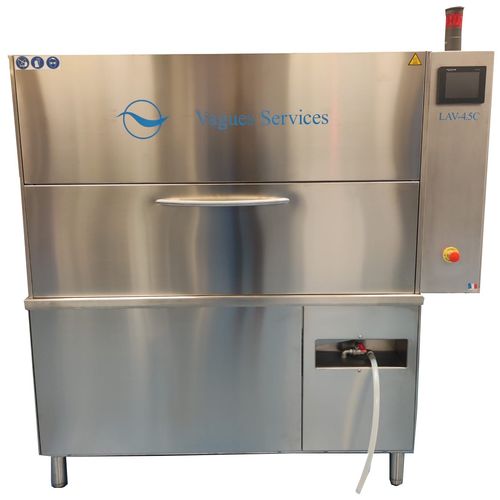

Water washing machine LAV 4.5C

framestainless steel

• Useful washing dimension: Length: 1350 mm - Depth: 700 mm - Height: 680 mm • Overall dimensions & Weight: Length: 1520 mm - Depth: 890 mm - Height: 2080 mm - Empty weight: 260 Kg • Electric power: 14200 W • Voltage: 400 V Tri + N + T Washing machine for washing brazing frames, flux box on the ovens. Equipped with a multifunction screen. W 1520 x D 890 x H 1760 mm (closed) W 1520 x D 890 x H 2080 mm (open) Useful washing dimension: L1350 x D700 x H 680 mm Tank capacity for liquid detergent: 40 to 150 L maximum 230 V power supply Total power: 24,000W Cleaning temperature: 40 ° C Recommended product: ATRON SP300, dilute to 10% No rinsing Drying (option) 1 stainless steel frame, adjustable feet with container for external product 1 inlet pump 1 product re-injection pump 1 product circulation pump 1 level float 2 Tangential turbines, power 4000 W 4 hot air inlet vents
