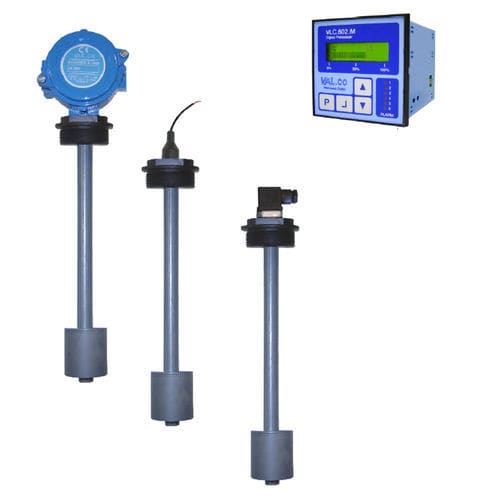

Reed level sensor LINEAR– V-F
for liquidsanalog4-20 mA

Add to favorites

Compare this product

Go to the VAL.CO srl website for more information

Characteristics

Technology

reed

Medium

for liquids

Interface

analog, 4-20 mA

Approvals

CE, ATEX

Other characteristics

ATEX, with digital display, PVC, IP65

Level range

Max.: 5 m
(16'04" )

Min.: 0 m
(0'00" )

Process pressure

Max.: 6 bar
(87.02 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 130 °C
(266 °F)

Min.: -30 °C
(-22 °F)

Description

Accuracy 5 mm Potenziometric signal output (LC) The principle of operation is of potentiometric type, based on the gradual shutdown of a chain of resistors and reed contacts, placed inside the guiding rod, by a magnetic float. The only moving element is the float that moves, for buoyancy, along the measuring rod. This ensures a high degree of reliability. • Measuring resolution 5 mm. • Potentiometric signal output (LC). • Built-in temperature sensors, on request. PT – PTC – NTC.
