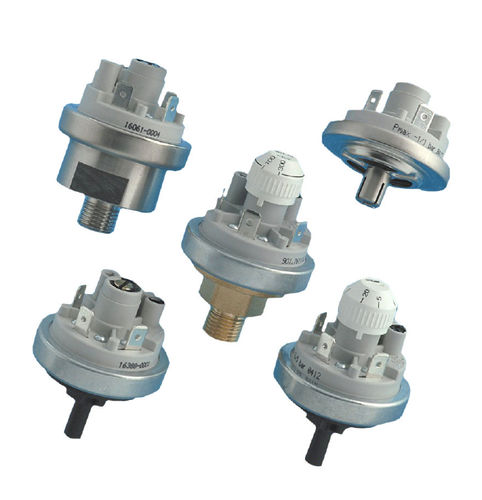

Diaphragm pressure and vacuum switch 901 seriesdifferentialfor liquids and gasesstainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- differential
- Fluid
- for liquids and gases
- Material
- stainless steel
- Protection level
- ATEX, IP65, IP67
- Other characteristics
- adjustable, IP67
- Pressure range
Max.: 12.06 bar
(174.92 psi)Min.: 0 bar
(0 psi)- Burst pressure
Max.: 2,500 bar
(36,259.43 psi)Min.: 50 bar
(725.19 psi)- Process temperature
Max.: 85 °C
(185 °F)Min.: -25 °C
(-13 °F)
Description
The pressure switches 901 series have a diaphragm sensing element and the adjustable measuring range. Suitable for monitoring pressure, vacuum and differential pressure of both liquid and gasses, also aggressive. The calibration is made easy by a knob that allows the gradual adjustment of the alarm threshold and the reset time of the electrical contact.
● Mechanical and electrical life, minimum 106 cycles.
● Easy calibration.
● Calibration to customer specification on request.
Catalogs
SENSOBAR 901
3 Pages
