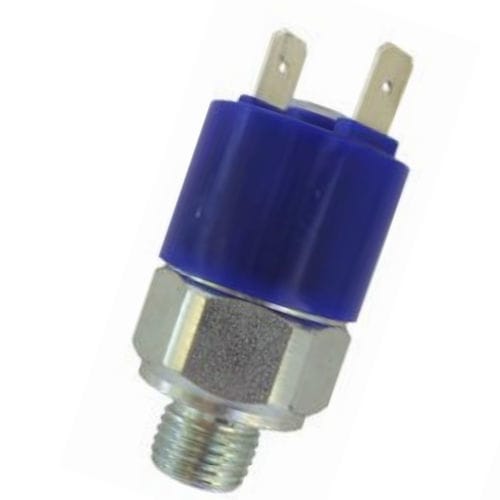

Diaphragm pressure and vacuum switch VSV series

SPDTNONC

Faston or screw terminals electrical connection The vacuum pressure switches VSV series use, as sensitive element, a diaphragm. An electrical contact, NO, NC or SPDT is turned ON when the set value is reached. The adjusting screw is mounted on the head of the instruments, you can set the calibration value, within the entire measuring range. Appropriate mechanical stops protect the electrical contact from excess of pressure. The electrical connections, fast-on type, or screw terminals may be protected by protection cap IP54. These pressure switches are used in pneumatic equipment, in the industrial plants, pumps, etc.. • Easy to use and adjust. • Easy to install. ADJUSTMENT To adjust the set point, turn the screw located into the head of the pressure switch.
