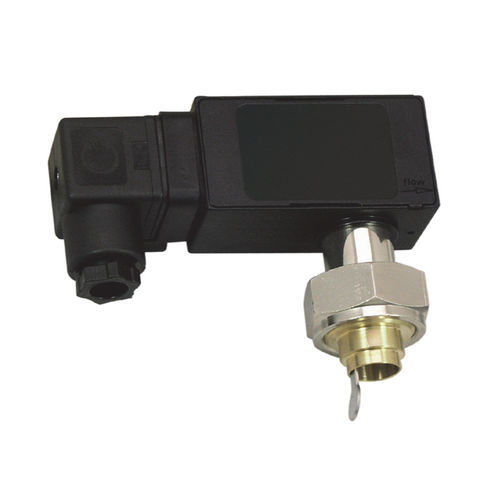

Magnetic flow switch UR3K-V

paddlefor liquidsthreaded

● Soldered/welded connection ● Low pressure loss ● Compact design ● Threaded connection ● Plug DIN 43650-A / ISO 4400 Characteristics The devices function via the principle of a spring-supported paddle, and the magnetic triggering of a reed switch. Handling and Operation Note ● Include straight calming section of 5 x DN in inlet and outlet ● When tightening the union nut, the connection piece must be countered using an open-ended spanner (SW 19). ● Include a filter if the media are dirty (use magnetic filter for ferritic components). ● It must be ensured that the values given for voltage, current, and power are not exceeded. ● When switched on, a load must be connected in series. ● The electrical details apply to ohmic loads. Capacitive, inductive and lamp loads must be operated using a protective
