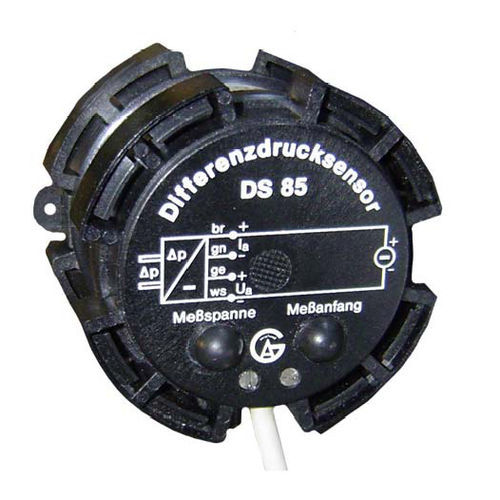

Differential pressure transmitter SENSOBAR-DS membraneanalogfor gas
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Technology
- membrane
- Output
- analog
- Fluid
- for gas, for liquids
- Protection level
- IP65
- Pressure range
Max.: 10,000 Pa
(1.45 psi)Min.: 0 Pa
(0 psi)- Precision
0.75 %
- Long-term stability
0.5 %
- Process temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
For all applications where it is necessary to detect and electrically convert differential pressure measurements of non-aggressive gases. The differential pressure is introduced via two hose ( 5 mm) in the measurement chamber, separated into two parts by a rubber diaphragm. The displacement of the diaphragm is inductively detected and converted into an electrical signal, voltage or current. The electronic circuit is completely separated from the pressure chamber. All instrument components are housed in a plastic enclosure with degree of protection IP65.
• Easy to Install
