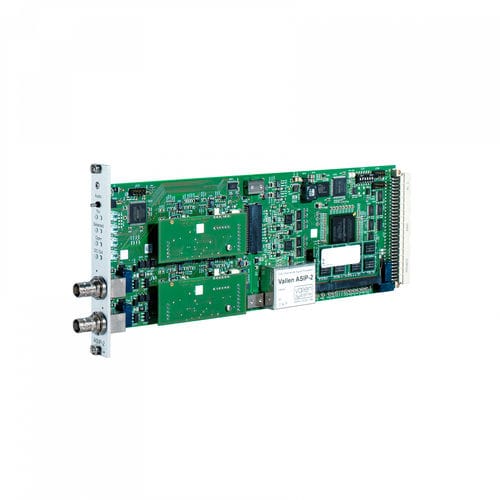

System processor ASIP-2

signaldigitalaudio

The dual channel AE signal processor ASIP-2 is the result of more than 30 years of experience in developing digital AE systems. ASIP-2 can be used in various chassis sizes to provide high flexibility regarding the required number of channels in the AE system. High Resolution - 40 MHz sampling rate at 18-bit dynamic range High Sensitivity - Lowest possible system noise due to digital filtering of the ADC data stream More Waveform Storage Space - Up to 1 GB/channel, downloaded during acquisition Field Hardened - Rugged front panel BNC connectors for quick and easy cable connection Real Time Indicators - Front panel LEDs indicate hit detection, preamplifier-cable-interruption, audio and calibration selection as well as amplitude saturation, etc. Advanced Filter Concept - Allows for narrow band triggering of wideband transient recording and noise reduction; 500 digital band-pass filters are available as well as notch filter for single frequency disturbance elimination Interoperatibility - ASIP-2 cards are plugged into one or more chassis (up to eight) which can be interconnected to form one large system
