3-axis machining center VMC series
verticalwith fixed tablerigid

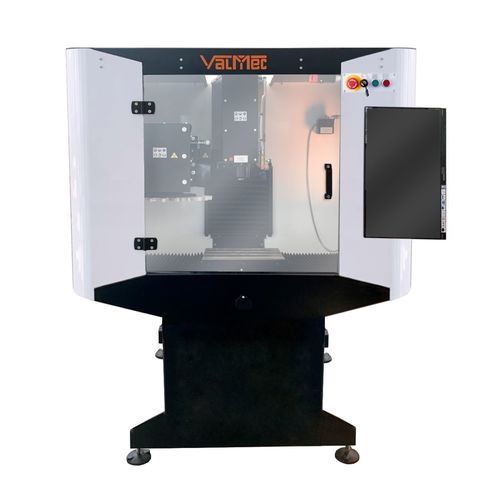

3-axis machining center - VMC series - Valmec - vertical / with fixed table / rigid
3-axis machining center - VMC series - Valmec - vertical / with fixed table / rigid
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
with fixed table
Other characteristics
rigid, precision
X travel

500 mm, 600 mm
(19.69 in, 23.62 in)

Y travel

390 mm, 400 mm
(15.35 in, 15.75 in)

Z travel

300 mm, 400 mm
(11.81 in, 15.75 in)

Rotational speed

18,000 rpm
(113,097 rad.min-1)

Power

3 kW
(4.08 hp)

Work feed X-axis

8,000 mm/min, 20,000 mm/min
(5 in/s, 13 in/s)

Work feed Y-axis

8,000 mm/min, 20,000 mm/min
(5 in/s, 13 in/s)

Weight

505 kg
(1,113.33 lb)

Description

The new Valmec machining center is the concentrate of the know-how gained over decades, we have developed a proprietary frame totally in cast iron as on higher-end machines, wanting to give our machining center rigidity and precision. Designed to be able to produce but also for those who need a large machine such as: • workshops; • laboratories; • start up; • university; • technical institutes; • craftsmen and all those who need a machine that is able to meet the needs and challenges that today's world offers us. Capable of working on ferrous and non-ferrous materials, on the new Valmec VMC Center it is possible to install various accessories for every need.
