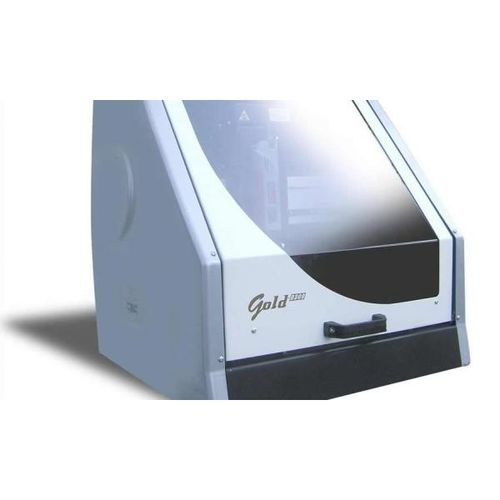

3/4-axis CNC milling machine Gold 300-D
verticalcompactprecision

3/4-axis CNC milling machine - Gold 300-D - Valmec - vertical / compact / precision
3/4-axis CNC milling machine - Gold 300-D - Valmec - vertical / compact / precision
Add to favorites
Compare this product


Characteristics

Number of axes
3/4-axis
Spindle orientation
vertical
Other characteristics
compact, precision
X travel

300 mm
(11.81 in)

Y travel

370 mm
(14.57 in)

Z travel

90 mm
(3.54 in)

Rotational speed

29,000 rpm
(182,212 rad.min-1)

Power

1 kW
(1.36 hp)

Workpiece max height

90 mm
(4 in)

Positioning accuracy

0.01 mm
(0.00039 in)

Repeatability

0.01 mm
(0.00039 in)

Description

Gold 300-D is the brand new Valmec 3 or four axis milling cutter that satisfies all the needs of the most advanced artisan laboratories thanks to the ease of use and the precision of the details as well as to the refined and modern design. It is equipped with a collection tank and hermetic closure. He works on materials such as aluminum, bronze, brass, various polymers, resins, engravings on steel and much more. Gold 300-D is a 3D cutter developed by Valmec in compliance with current regulations and following the strictest controls, designing and manufacturing everything in Italy specifically to maintain a high quality standard. Valmec present since 2000, is a company aimed at the realization of cutters in the CAD-CAM sector specifically intended for design or production studies. Thanks to their compact size, silence, precision, and safety features, Valmec cutters are very popular in the most varied working environments. Who is it for? Gold 300-D is particularly suitable for laboratories, craftsmen and all those who offer 2D and 3D milling services In fact, the Gold 300-D milling machine is a real machining center made to measure for laboratories and with an ease of use that is unique in the sector, thanks to Valmec's decades of experience in the production of 3D milling machines. Gold 300-D It allows the laboratory both to satisfy internal requests and to offer a service on behalf of third parties. Thanks to the intuitiveness of the peripheral, learning times are minimal and the laboratory can immediately be productive and return the investment quickly.
