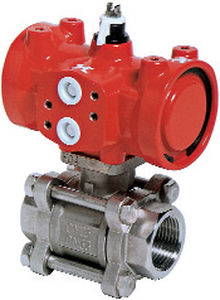

Ball valve 275, 276pneumatically-operatedfor controlthreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- pneumatically-operated
- Function
- for control
- Body
- threaded, 3-piece, stainless steel
- Number of channels
- 2-way
- DN
Max.: 50 mm
(1.969 in)Min.: 10 mm
(0.394 in)- Pressure
100 bar
(1,450.4 psi)- Temperature
Max.: 150 °C
(302 °F)Min.: -20 °C
(-4 °F)
Description
Stainless steel valve
FPM shaft “o-ring”
PTFE+15%GF ball seats
BSP threaded end connections
(SW and BW on request)
NP63
Working pressure: 16 Bar*
Fluid temperature: -20°C +150°C*
Actuator temperature: 0°C +90°C
Actuator air: 6 Bar*
