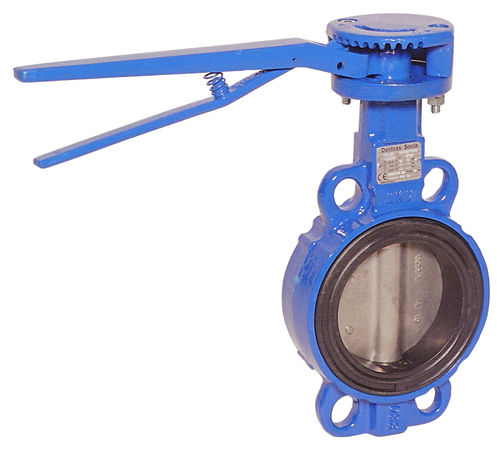

Butterfly valve 630manualwaferflange
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- manual
- Body
- wafer, flange, cast iron
- DN
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 10 bar
(145 psi)- Temperature
Max.: 110 °C
(230 °F)Min.: -10 °C
(14 °F)
Description
Wafer NP6/10/16/20* - GG25 or GG40 cast iron
+ Epoxy body - 316 Stainless steel butterfly
EPDM / FPM (Fluored elastomere) / NITRILE*
Gasket - Temperature :
EPDM = -10°C +110°C - FPM = +5°C +180°C
