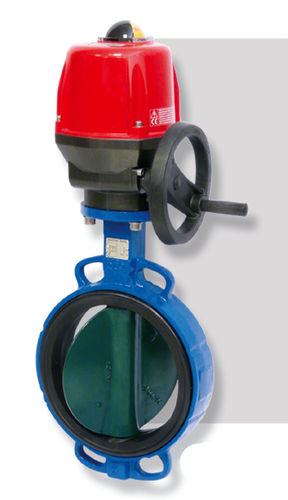

Butterfly valve 614electrically-actuatedwaferflange
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- electrically-actuated
- Body
- wafer, flange, cast iron
- DN
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 6 bar
(87 psi)- Temperature
Max.: 110 °C
(230 °F)Min.: -10 °C
(14 °F)
Description
GG25 cast iron body, epoxy coated
GGG40 polyamide coated disc
EPDM liner (FKM, NBR on request)
Wafer PN 6/10/16/ASA150
Working pressure 16 Bar*
Fluid temperature : - 10°C to +110°C*
Duty rating : 50% (CEI34)
Actuator temperature: -20°C to +55°C (Failsafe: -10°C to +40°C)
Enclosure IP67
Electric connections: 2x ISO M20
