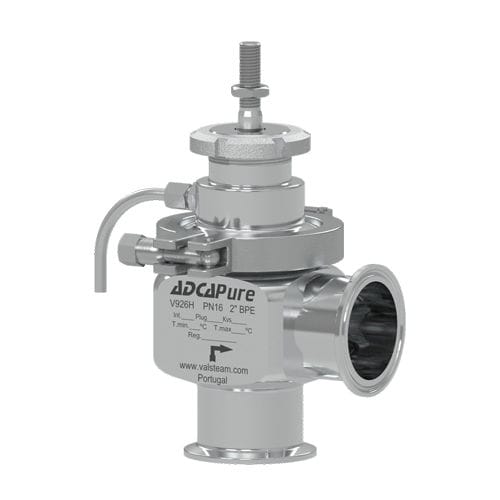

Plug valve V926Hpneumatichydraulicelectric
Add to favorites
Compare this product
Characteristics
- Type
- plug
- Operation
- pneumatic, electric, hydraulic
- Function
- for control, shut-off
- Media
- for chemical products, for liquid food products and beverages, for gas
- Body
- angle seat, stainless steel
- Applications
- chemical, for the food industry, for the pharmaceutical industry, beverage, hygienic, high-purity, for the cosmetics industry
- Number of channels
- 2-way
- DN
Min.: 0.5 in
Max.: 4 in
- Pressure
16 bar
(232.1 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 170 °C
(338 °F)- Flow rate
Min.: 0.1 m³/h
(3.53 ft³/h)Max.: 160 m³/h
(5,650.35 ft³/h)
Description
The ADCAPure V926H is a series of single seated two-way hygienic control valves with angle connections. These valves are designed to regulate and accurately control flow of liquids and gases and are suitable for hygienic applications found in the pharmaceutical, cosmetic, fine chemical and food & beverage industries. The V926H can be assembled with pneumatic, hydraulic or electric actuators, for modulating and shut-off control tasks.
MATERIAL:
Stainless steel
SIZES:
1/2" to 4"
CONNECTIONS:
ASME BPE clamp ferrules or tube weld (ETO) ends
