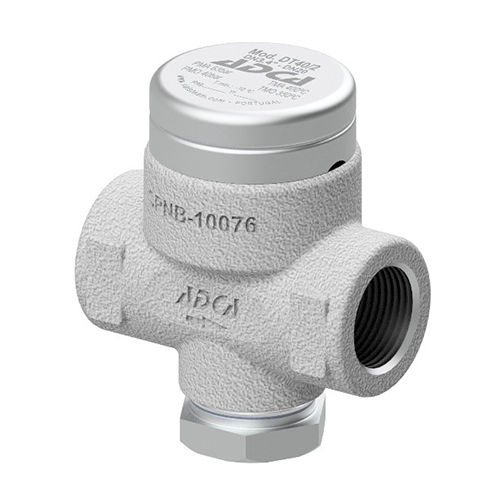

Steam drain DT40/2

automaticdisccompact

The DT40/2 thermodynamic disc steam traps are compact and lightweight, easy to install traps, excellent for high pressure systems and steam tracing applications. The insulation cover ensures a consistent operation and makes it particularly suitable for those applications where the weather conditions, such as rain and wind, may affect the normal operation. These traps offer a wide operating range, without adjustment and include a bimetal air vent ring which reduces start-up time by preventing air binding. MATERIAL: Stainless steel SIZES: 3/8” to 1” – DN 10 to DN 25 CONNECTIONS: Female threaded ISO 7 Rp or NPT Flanged EN PN 40 Flanged ASME Class 150 or 300 Socket weld (SW) ASME B16.11 Butt weld (BW) ASME B16.25 on request
