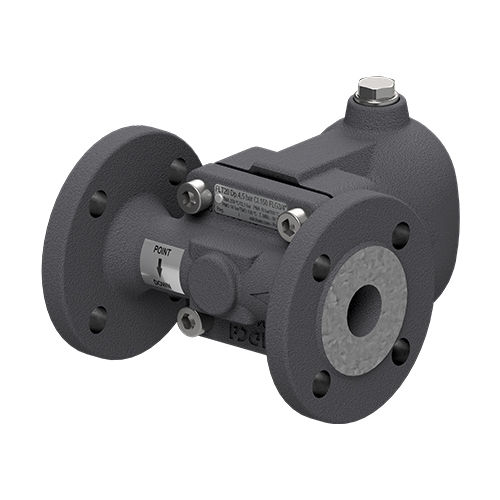

Condensate drain FLT20airsteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, air, steam
- Operational mode
- automatic
- Type
- thermostatic
- Operating pressure
Max.: 14 bar
(203.05 psi)Min.: 0 bar
(0 psi)- Discharge capacity
Max.: 595 kg/h
(1,312 lb/h)Min.: 0 kg/h
(0 lb/h)- Operating temperature
250 °C
(482 °F)
Description
The FLT20 is a series of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer.
Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge
is essential.
MATERIAL:
SG iron
SIZES:
1/2” to 1” – DN 15 to DN 25
CONNECTIONS:
Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1/-2 PN 16
Flanged ASME B16.42 Class 150
Catalogs
FLT20
5 Pages
