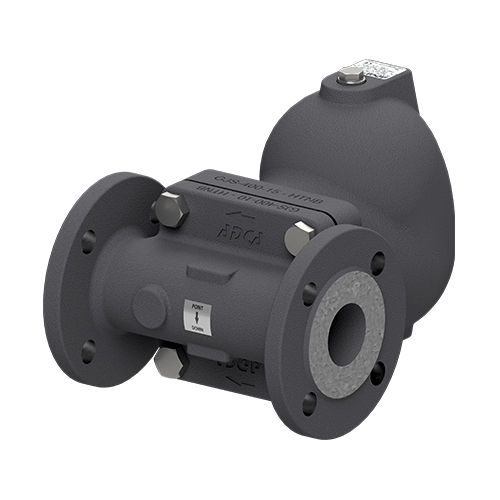

Condensate drain FLT27airsteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, air, steam
- Operational mode
- automatic
- Type
- disc
- Operating pressure
Max.: 14 bar
(203.05 psi)Min.: 0 bar
(0 psi)- Discharge capacity
Max.: 7,300 kg/h
(16,094 lb/h)Min.: 0 kg/h
(0 lb/h)- Operating temperature
250 °C
(482 °F)
Description
The FLT27 is a range of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer.
Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential and high flow capacities are involved.
MATERIAL:
SG iron
SIZES:
11/2” to 2” – DN 40 to DN 50
CONNECTIONS:
Female threaded ISO 7 Rp or NPT
Flanged EN 1092-2 PN 16
Flanged ASME B16.42 Class 150
Catalogs
FLT27
5 Pages
