Condensate drain FLT29TWairsteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, air, steam
- Operational mode
- automatic
- Type
- thermostatic
- Operating pressure
14 bar
(203.05 psi)- Discharge capacity
Min.: 0 kg/h
(0 lb/h)Max.: 45,000 kg/h
(99,208 lb/h)- Operating temperature
250 °C
(482 °F)
Description

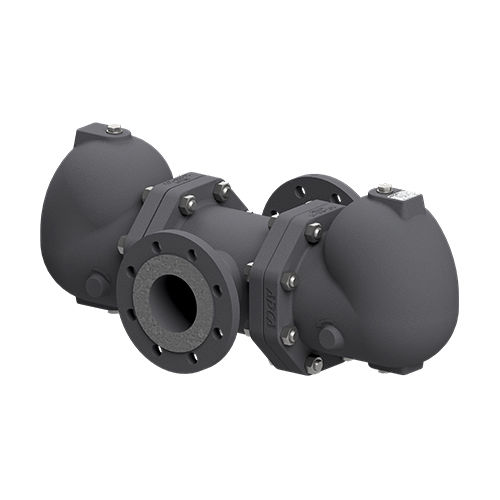

The FLT29TW is a range of high capacity float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer.
Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential and high flow capacities are involved.
MATERIAL:
SG Iron
SIZES:
3” to 4” – DN 80 to DN 100
CONNECTIONS:
Flanged EN 1092-1 PN 16
Flanged ASME B16.5 Class 150
Catalogs
FLT29TW
5 Pages
