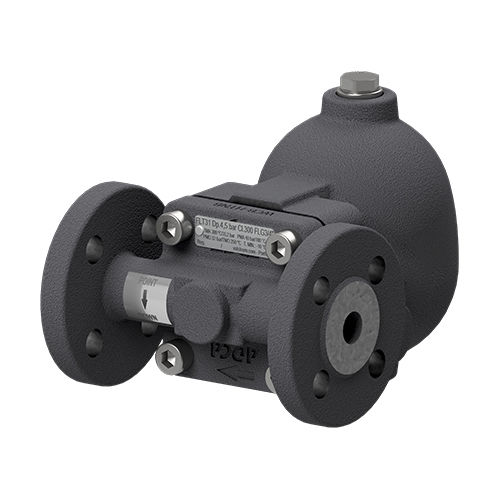

Condensate drain FLT31airsteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, air, steam
- Operational mode
- automatic
- Type
- thermostatic
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 32 bar
(464.12 psi)- Discharge capacity
Min.: 0 kg/h
(0 lb/h)Max.: 710 kg/h
(1,565 lb/h)- Operating temperature
250 °C
(482 °F)
Description
The FLT31 is a series of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer.
Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential.
MATERIAL:
Carbon steel
SIZES:
1/2” to 1” – DN 15 to DN 25
CONNECTIONS:
Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11
Catalogs
FLT31
5 Pages
