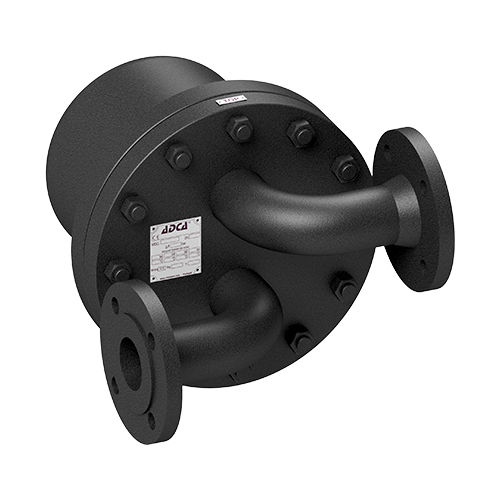

Condensate drain FLT22airsteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, air, steam
- Operational mode
- automatic
- Type
- thermostatic
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 21 bar
(304.58 psi)- Discharge capacity
Min.: 0 kg/h
(0 lb/h)Max.: 12,050 kg/h
(26,566 lb/h)- Operating temperature
250 °C
(482 °F)
Description
The FLT22 is a series of high capacity float and thermostatic steam traps with integral air vent, designed for modulating discharge of condensate to ensure maximum system heat transfer.
Specially designed for applications where continuous drainage is essential and high loads are involved.
MATERIAL:
Carbon steel or stainless steel
SIZES:
11/2” to 2” – DN 40 to DN 50
CONNECTIONS:
Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 25
Flanged ASME B16.5 Class 150 or 300
Catalogs
FLT22
2 Pages
