Condensate drain FLT314TWairsteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, air, steam
- Operational mode
- automatic
- Type
- float
- Operating pressure
Max.: 12 bar
(174.05 psi)Min.: 0 bar
(0 psi)- Discharge capacity
Max.: 100,000 kg/h
(220,462 lb/h)Min.: 0 kg/h
(0 lb/h)- Operating temperature
250 °C
(482 °F)
Description

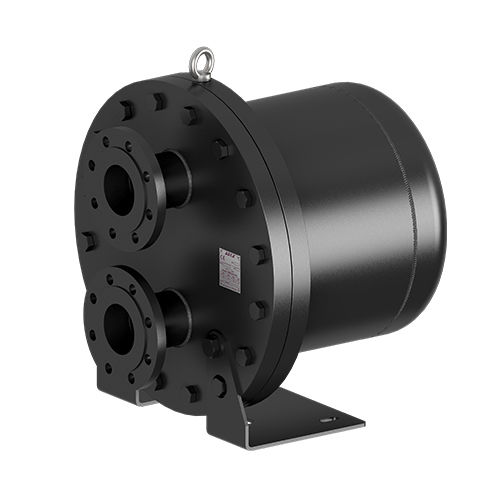

The FLT314TW is a series of high capacity float and thermostatic steam traps with integral air vent, designed for modulating discharge of condensate to ensure maximum system heat transfer.
Specially designed for applications where continuous drainage is essential and high loads are involved.
MATERIAL:
Carbon steel
SIZES:
3” – DN 80
CONNECTIONS:
Flanged EN 1092-1 PN 16
Flanged ASME B16.5 Class 150
Catalogs
FLT314TW
3 Pages
