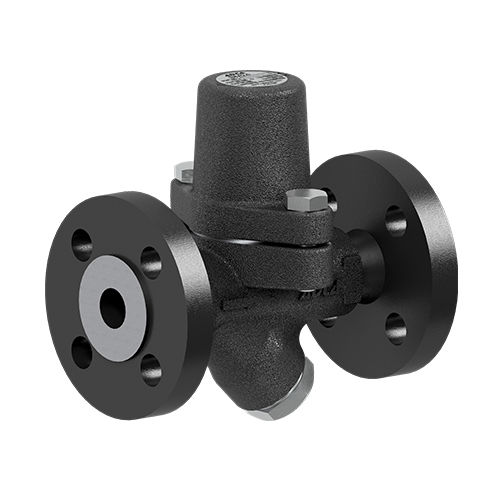

Condensate drain BM32airsteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, air, steam
- Operational mode
- automatic
- Type
- disc
- Other characteristics
- bimetallic
- Operating pressure
Max.: 32 bar
(464.12 psi)Min.: 0 bar
(0 psi)- Discharge capacity
Max.: 3,500 kg/h
(7,716 lb/h)Min.: 0 kg/h
(0 lb/h)- Operating temperature
300 °C
(572 °F)
Description
The BM32 series bimetallic steam traps and air vents are simple and robust traps, recommended for steam process applications where condensate sensible heat can be recovered, steam tracing lines, drip points, storage tank coils, steam air venting, etc. The use of condensate sensible heat reduces steam consumption.
MATERIAL:
Carbon steel
SIZES:
1/2” to 1” – DN 15 to DN 25
11/2” to 2” – DN 40 to DN 50
CONNECTIONS:
Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket weld (SW) ASME 16.11
Butt weld (BW) ASME 16.25
Catalogs
BM32
2 Pages
