Air drain BM87steamautomaticdisc
Add to favorites
Compare this product
Characteristics
- Medium
- air, steam
- Operational mode
- automatic
- Type
- disc
- Other characteristics
- bimetallic
- Operating pressure
Max.: 45 bar
(652.67 psi)Min.: 0 bar
(0 psi)- Discharge capacity
Max.: 4,100 kg/h
(9,039 lb/h)Min.: 0 kg/h
(0 lb/h)- Operating temperature
425 °C
(797 °F)
Description

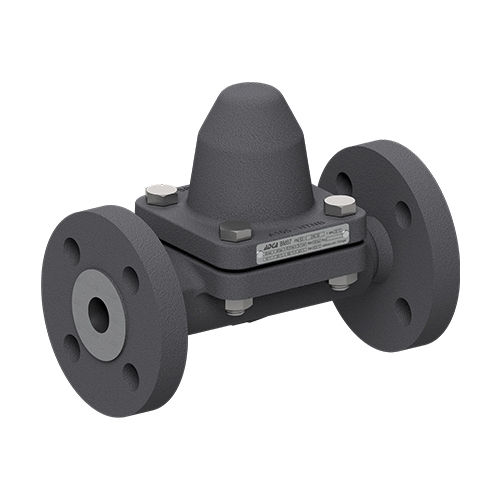

The BM87 is a series of robust and efficient bimetallic steam traps and air vents. These steam traps are recommended for steam process applications where sensible heat can be recovered, such as steam tracing lines, drip points, storage tank coils and steam air venting.
MATERIAL:
Carbon steel
SIZES:
1/2'' to 1'' – DN 15 to DN 25
CONNECTIONS:
Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40 or PN 63
Flanged ASME B16.5 Class 300 or 600
Socket weld (SW) ASME B16.11
Butt weld (BW) ASME B16.25
Catalogs
BM87
2 Pages
