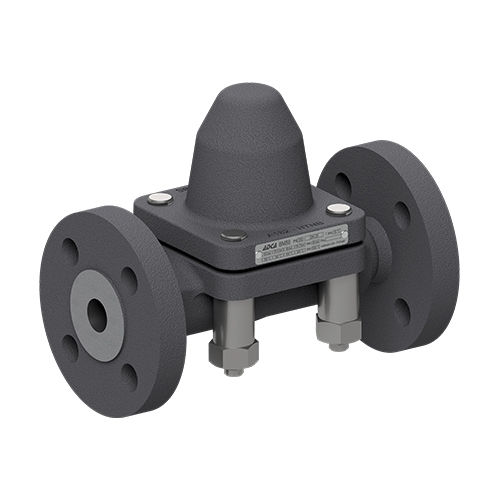

Air drain BM88steamautomaticdisc
Add to favorites
Compare this product
Characteristics
- Medium
- air, steam
- Operational mode
- automatic
- Type
- disc
- Other characteristics
- bimetallic
- Operating pressure
Max.: 85 bar
(1,232.82 psi)Min.: 0 bar
(0 psi)- Discharge capacity
Max.: 5,800 kg/h
(12,787 lb/h)Min.: 0 kg/h
(0 lb/h)- Operating temperature
500 °C
(932 °F)
Description
The BM88 is a series of robust and efficient bimetallic steam traps and air vents. These steam traps are recommended for steam process applications where sensible heat can be recovered, such as steam tracing lines, drip points, storage tank coils and steam air venting. Specially designed for draining high pressure superheated steam lines and processes.
MATERIAL:
Carbon steel
SIZES:
1/2'' to 1'' – DN 15 to DN 25
CONNECTIONS:
Threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 100
Flanged ASME B16.5 Class 600
Socket weld ASME B16.11
Butt weld ASME B16.25
Catalogs
BM88
2 Pages
