Steam drain UDT46automaticdischigh-pressure
Add to favorites
Compare this product
Characteristics
- Medium
- steam
- Operational mode
- automatic
- Type
- disc
- Other characteristics
- high-pressure
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 32 bar
(464.12 psi)- Discharge capacity
Min.: 0 kg/h
(0 lb/h)Max.: 695 kg/h
(1,532 lb/h)- Operating temperature
245 °C
(473 °F)
Description

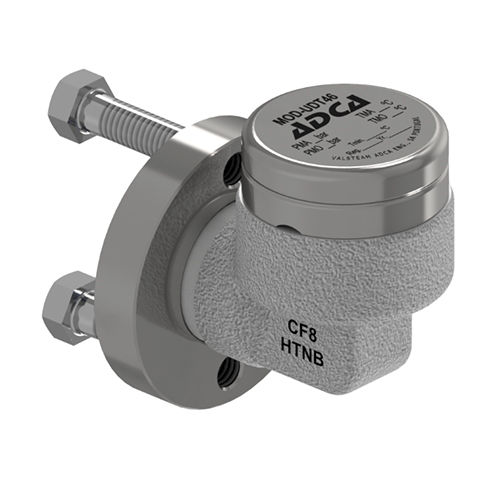

The UDT46 series thermodynamic steam traps, completely in stainless steel, are excellent for high pressure systems, including steam tracing applications.
The insulation cover ensures a consistent operation and makes them particularly suitable for applications where the weather conditions, such as rain and wind, may affect the normal operation. These traps have only one moving part and offer a wide operating range, without adjustment. These traps fit the UCX universal connectors and CTS4U compact stations.
MATERIAL:
Stainless steel
SIZES:
According to the connector
Catalogs
UDT46
2 Pages
