Globe valve V25/2 (EN)pneumatichydraulicelectric
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- pneumatic, electric, hydraulic
- Function
- shut-off
- Applications
- industrial, process
- Number of channels
- 2-way
- Other characteristics
- modulating
- DN
Min.: 15 mm
(0.591 in)Max.: 200 mm
(7.874 in)- Pressure
16 bar, 40 bar
(232.1 psi, 580.2 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 400 °C
(752 °F)- Flow rate
Min.: 0.1 m³/h
(3.53 ft³/h)Max.: 630 m³/h
(22,248.24 ft³/h)
Description

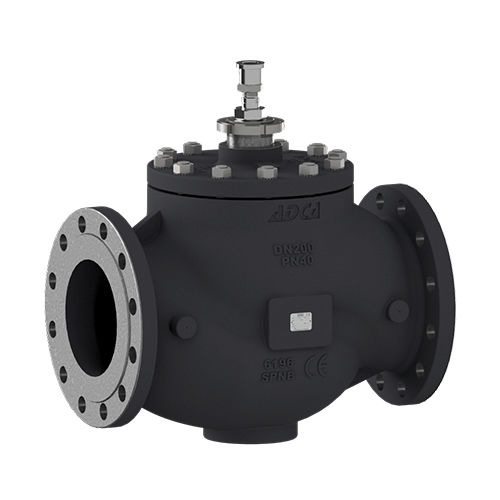

The ADCATrol V25/2 is a series of single-seated, two-way globe valves designed for process engineering and industrial applications, where events such as erosion, cavitation or flashing may occur.
These valves can be assembled with pneumatic, hydraulic or electric actuators, for modulating and shut-off control tasks.
MATERIAL:
SG iron, carbon steel or stainless steel
EN/SIZES:
DN 15 to DN 200
ASME/SIZES:
DN 15 to DN 150
EN/CONNECTIONS:
Flanged EN 1092-2 PN 16
Flanged EN 1092-1 PN 16 or PN 40
ASME/CONNECTIONS:
Flanged ASME B16.5 Class 150 or 300
