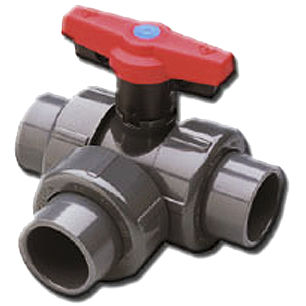

Ball valve 400 series

manualfor potable waterPVC

Industrial grade 3-way PVC ball valves in a true union body design available in sizes 1/2" - 4" and comes in socket weld, flanged, or threaded end connections. Ideal for potable water use and ISO pattern for actuation mounting. L-port and T-port configurations available on the 3-way PVC ball valve. Series PVC-400 (3-Way PVC Ball Valve Configuration, Direct Mount) 3-way PVC true union ball valves are an industrial grade multi-port valve solution. Available in various connection ends and the ability to work in the most harsh conditions. ISO pattern actuation mounting is optional. Comes standard with handle for manual use, actuation optional, please see our automated valve packages for more details. Manual 3-Way PVC Ball Valve - L-Port/T-Port •True union valve body design •Available in sizes 1/2" - 4" • 3-way valve design •T-port and L-port flow configurations available •Available in flanged, Spigot or SR threaded ends •1/2" - 2" valves pressure rated at 235PSI @ 73F •2 1/2" - 4" valves pressure rated at 150PSI @ 73F •Self adjusting PTFE floating seat design •Built in handle lockout •Produced in IPS sizes 1/2 - 4 inch
