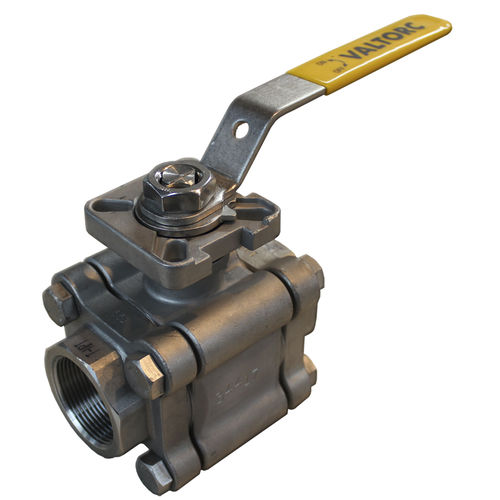

Fire-safe valve 160 series

ballleverthreaded

Fire safe, direct mount stainless steel ball valve. API 598 test standard available in threaded end (NPT) or socket weld. High quality 316 stainless steel body. Available in sizes 1/2" - 4" Series 160 (Fire Safe, Direct Mount - 2000PSI) The series 160 is a direct mount, fire safe stainless steel/carbon steel ball valve. Our industrial grade, high pressure ball valve series is made from 316 stainless steel (carbon steel available as an option - please review our Carbon Steel Ball Valve page for more details). Available in threaded (NPT) or socket weld connection ends. Available in sizes: 1/2", 3/4", 1" 1 1/4", 1 1/2" and 2" Fire Safe Stainless Steel Ball Valves API 598 Standards Valtorc series 160 is a three piece design ball valve available in threaded (NPT) or socket weld connection ends. With ISO mounting pad, ANSI/API 598 approvals, the fire safe ball valve can be replaced while in service in production line due to the three piece design, saving time and money. The series 160 comes in manual mode as a standard but is offered with electrical or pneumatic actuation upon request. Please contact Valtorc engineers to customize your valve package. Offered in Threaded (NPT) or Socket Weld Connection Ends •1/2" - 2" (inches) Ball Valves sizes available •Steam rating: 150 PSI WSP •Working Pressure : 2000 PSI •INVESTMENT CASTING BODY & CAP •PTFE SEAL KITS : REPLACES PTFE, RPTFE AND FPA, LOW DEFORMATION UNDER LOAD, LOW PERMEATION •Temperature Rating : -45.5° C (-50'F) to 246'C (475) •LONG CYCLE LIFE •BLOW - OUT- PROOF STEM •ANTI - STATIC DEVICE, ADJUSTABLE STEM PACKING •HANDLE WITH LOCKING DEVICE
