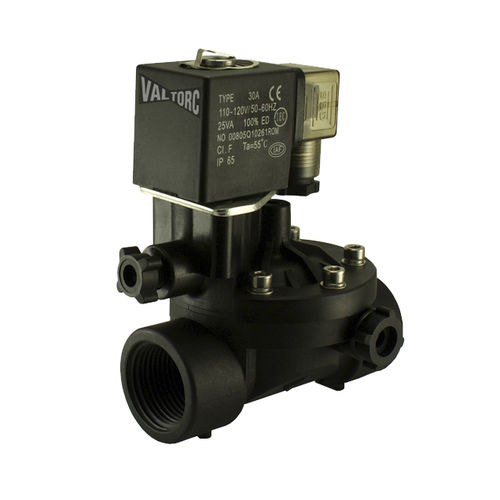

Pilot-operated solenoid valve SV-830 series

2-wayNCwater

Plastic body 2-way normally closed solenoid valve is ideal for air, liquid and gas applications. Available in 1", 1 1/2" and 2" with NPT end connections. PA66 plastic body housing, Buna N seals, coil class IP65. Series SV-830 Plastic Solenoid Valve Valtorc USA's series 830 2-way normally closed electric solenoid process valve is to control On/Off of air, inert gas, liquid, and water. This solenoid valve has one inlet and one outlet port. Valve stays close when the coil is de-energized, and it opens when energized. Series 830 solenoid valve with manual override switch, valve can be opened manually when no electricity supply. Valve can be mounted in any position. 2 Way Normally Closed Plastic Electric Air, Gas, Water Solenoid Valve With Manual Override •Valve Type: 2 Way Normally Closed (Valve opens when energized) •Service Media: Air, Gas, Liquid, Water •Operation Model: Pilot •Body Material: PA66 Plastic •Seal Material: NBR (Buna N) •Coil Power: DC -13W ; AC - 25VA •Coil Class: H Class IP 65 •Coil Duty: 100% ED (Continuous Duty) •Operating Pressure: 5 PSI to 110 PSI •Operating Temperature: 0 to 60°C •Port Size: 1", 1 1/2" and 2" Inch NPT Female Port Availability •Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC •Voltage Tolerances: DC: +10% –5% ; AC: +10% -15% •Electrical Connection: DIN 43650A Connector with LED Indicator
