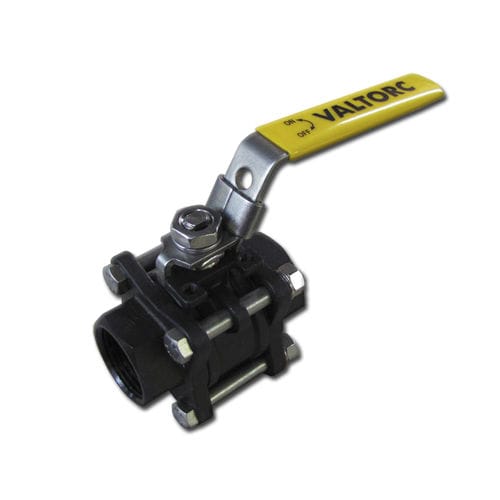

Ball valve 131 series

leverthreadedweld

The general purpose carbon steel ball valve is available in sizes 1/4" - 4" with a working pressure of 1000PSI (150 PSI WSP steam rating). Available with NPT (threaded) or socket weld end connections. ISO 5211 mounting pad standard with optional padlocking device. *Not for direct mount actuation* Series 131 (Carbon Steel, Threaded or Socket Weld) Valtorc's general purpose, industrial grade carbon steel ball valves are suitable for high pressure or temperature applications. Rated for 1000PSI with PTFE seats and a 150PSI steam rating. 304 stainless steel handle and nuts with a high quality carbon steel body. *Not for direct mount actuation. Manual Carbon Steel Ball Valve •1/4" - 4" (inches) sizes available •Steam rating: 150 PSI WSP •Blow-out-proof stem design •ISO 5211 Mounting pad •Body: ASTM A351 Gr.CF8M •Ball: SS316 - Stem: SS 316 •End Connections: Threaded End, Socket Weld End •Working Pressure: 1000 PSI •Temperature Range: -50° to 450 °F •TEST STANDARD:API598 •Vacuum Service to 29" Hg •Options: Padlocking device
