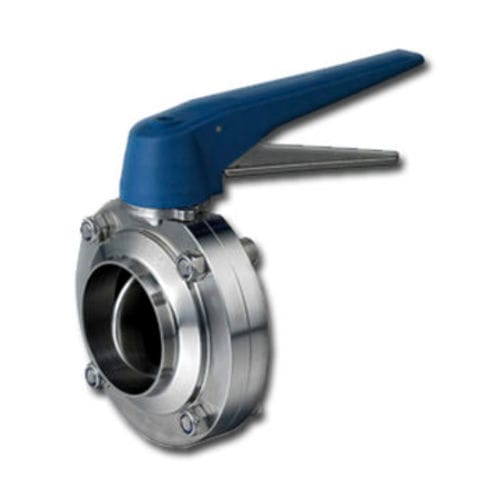

Butterfly valve 535SN series
manualpneumatically-operatedelectrically-actuated

Butterfly valve - 535SN series  - Valtorc - manual / pneumatically-operated / electrically-actuated
Butterfly valve - 535SN series  - Valtorc - manual / pneumatically-operated / electrically-actuated
Add to favorites
Compare this product


Characteristics

Type
butterfly
Operation
manual, pneumatically-operated, electrically-actuated
Function
for control
Media
for gas
Body
stainless steel, EPDM
Applications
chemical, sanitary, for food
Other characteristics
high-performance, actuated, high-performance
DN

Min.: 0.5 in

Max.: 12 in

Pressure

110 psi

Temperature

200 °F
(93 °C)

Description

The high performance sanitary butterfly valve are offered in sizes up to 12" in manual or actuated packages. Ideal for food services and satisfies USDA and FDA standards. FDA approved Viton or EPDM options available upon request. Valtorc's sanitary high performance 316 butterfly valve series stand above others in the sanitary and fine chemical fields. The valves incorporated an advanced design with characteristics unseen in other valves. All valves underwent extreme and extensive testing and field evaluation prior to introduction. 360 degree installation, USDA approved. Ideal for food services with 110PSI max at 200F. STAINLESS STEEL HIGH PERFORMANCE SANITARY BUTTERFLY VALVE BODY ASTM 316L grade stainless steel Surface finish meets 3-A, FDA & USDA standards 316L mirror finish disc provides an even flow preventing obstructions and restrictions Opposing body bolt design prevents loosening between body sections due to vibration and operation, and provides positive sealing Bolting is flush with body surface FDA approved available options: si licone, EPDM and VITON® 13-position, 304SS, spring loaded lever lock handle W'- 6" Standard: Tri-Ciamp® or Butt-Weld; other options available Suitable for actuation with pneumatic, electric, or canister actuators 110 PSI @ 200· F (Approx. gs·C)
