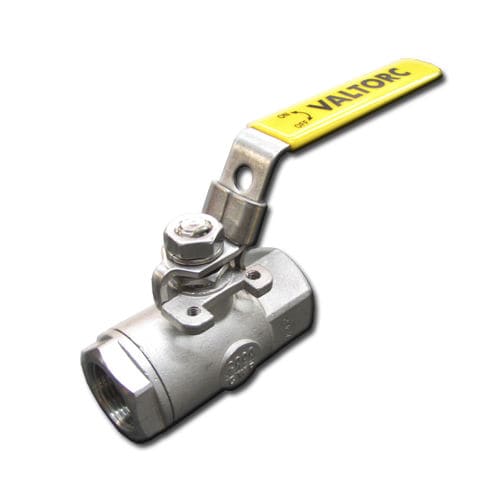

Ball valve 120 series

leverfor steamthreaded

Steam rated threaded ball valve in stainless steel body available in sizes 1/4" - 2". ISO mounting pad, 250PSI WSP; 2000PSI working pressure and a temperature range up to 500°F. 316 stainless steel stem and ball as a standard. Series 120 (Threaded, Steam Rated 250PSI WSP/2000PSI) Valtorc's series 120 ball valve is available in threaded end connections and is ideal for any steam service environment. With 250PSI WSP and up to 2000PSI working pressure, this valve is ideal for any intensive steam applications or media. High grade stainless steel material and API testing standards. ISO mounting pad for direct mount actuation. Available in sizes: 1/4", 3/8", 1/2", 3/4", 1" 1 1/4", 1 1/2" and 2". Steam Rated Industry Ball Valve •1/4" - 2" (inches) sizes available •Steam rating:250 PSI WSP •Blow-out-proof stem design •ISO 5211 Mounting Pad •Body: ASTM A351 Gr.CF8M •Ball: SS316 •Stem: SS316 •Seals: CGT (CARBON and GRAPHITE Reinforced PTFE Seats, seals and Packings) •End Connections: Threaded End Ball Valves •Working Pressure: 1/4"-1" 2000 PSI •Temperature Range: -50° to 500°F •Padlocking device •TEST STANDARD:API598 •Vacuum Service to 29" Hg •Threaded Type: ANSI B 1.20.1 (NPT), DIN 259/DIN 2999, ISO 228, BSP,PT
